Glass Tube In-Line Holders

Specifications

• For 3AG fuse type,MFA,AGC,SFE.
• Electrical Rating : Max. 20A 32V insulation Body: Nylon
• Contacts:Tin plated Brass
• Wire Range:#16~#20

Specifications

• For 3AG fuse type AGC,SFE, JSO and MFA
• Note:With other wire sizes or lengths available on special order.
• Range of wire gauge #16~#20

Specifications

• For 3AG fuse type
• Range of wire gauge #16~#20

Specifications

• For 5AG fuse
• Max. electrical rating: 60A 32V
• Note:With other wire sizes or lengths available on speccial order.
• Range of wire gauge #8~#12

Specifications

• For Φ 6.35 x 16mm ~ Φ 6.35 x 32 mm Fuses
• Insulating body:PC
• Electrical:MAX.20A
• Wire gauge available: #14~#20

Specifications

• For Φ5.2 x 20 mm Fuse
• Insulating body:PC
• Electrical:Rated for current up to 10A
• Note:With other wire sizes or lengths available on specical order.
• Range of wire gauge #18~#22

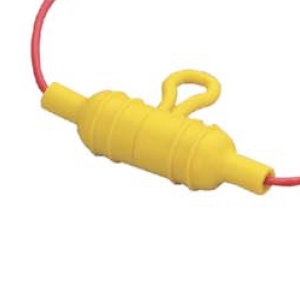

Specifications

• For Φ 6.35 x 30 mm AND Φ6.35 x32 mm Fuses.
• Insulating body:Thermoplastic rubber/ PVC, Color:Yellow or Black.
• Electrical: Rated for currents up to 30A, when proper wire size and fuse clip is installed for fuse size.


Specifications

• For Φ6.35 x 22 mm /25mm/32mm Fuses
• Insulating body:Nylon
• Electrical:Rated for currents up to 20A, when proper wire is installed for fuse size
• Note:With other wire size or length available on customer specical order, wire range from #16~#18

Specifications

• For 3AG fuse type
• Cap Material : Nylon
• Body Material : PBT
• Electrical : Max. 30A 250V

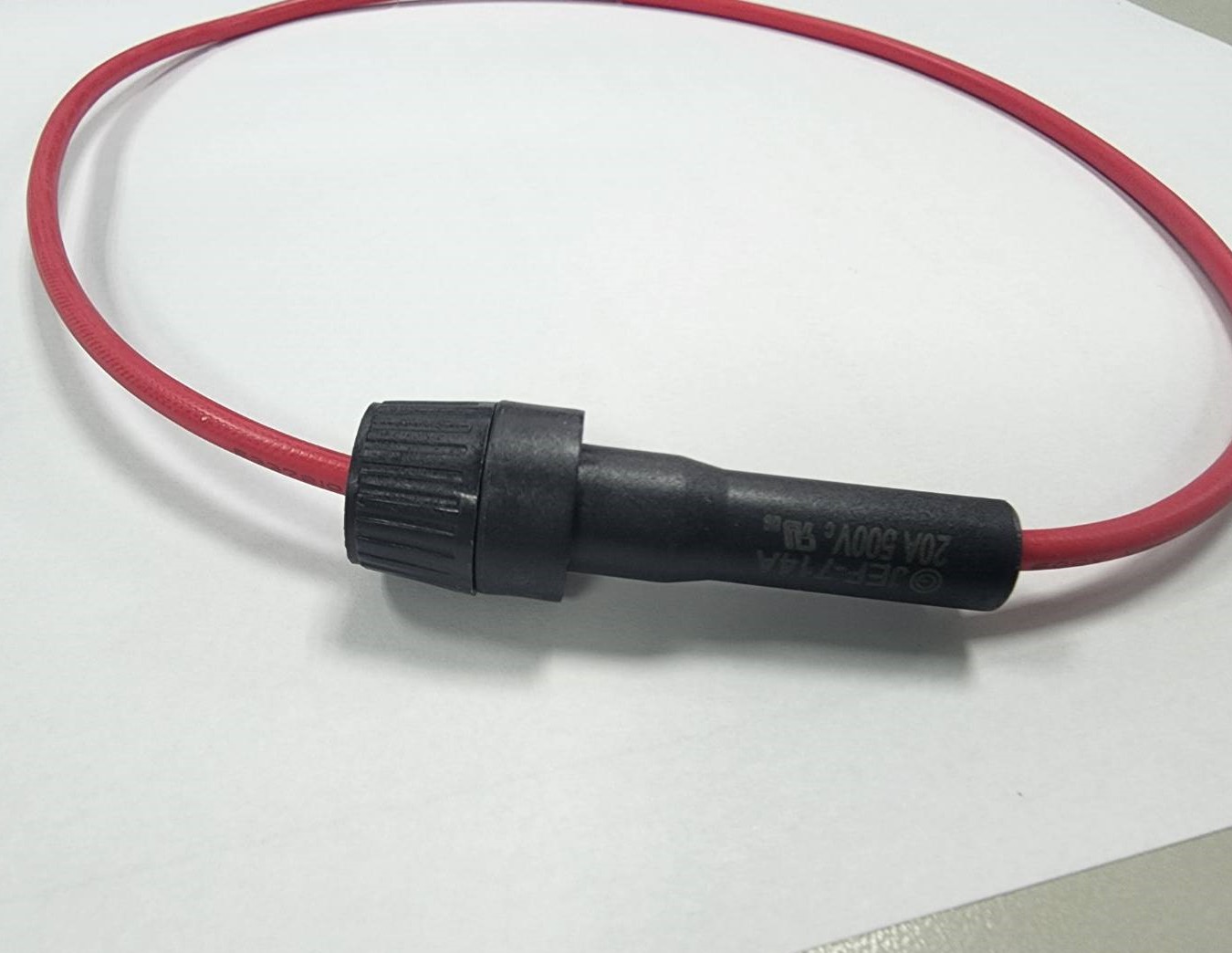

• Specifications

  • FOR 5.2X20mm FUSES

  • ELECTRICAL RATING: MAX.20A 600V DC/AC

  • Insulating Body :Nylon UL94-V0/ Color:Black
  • Terminal:Copper alloy , Tin plated

  • Available Wire Sizes : #14(MAX. OD 3.6)~#20

    Wire Style: UL1015 / UL3321 / UL3266 (Max. 250V)

  • Part comply with RoHS
