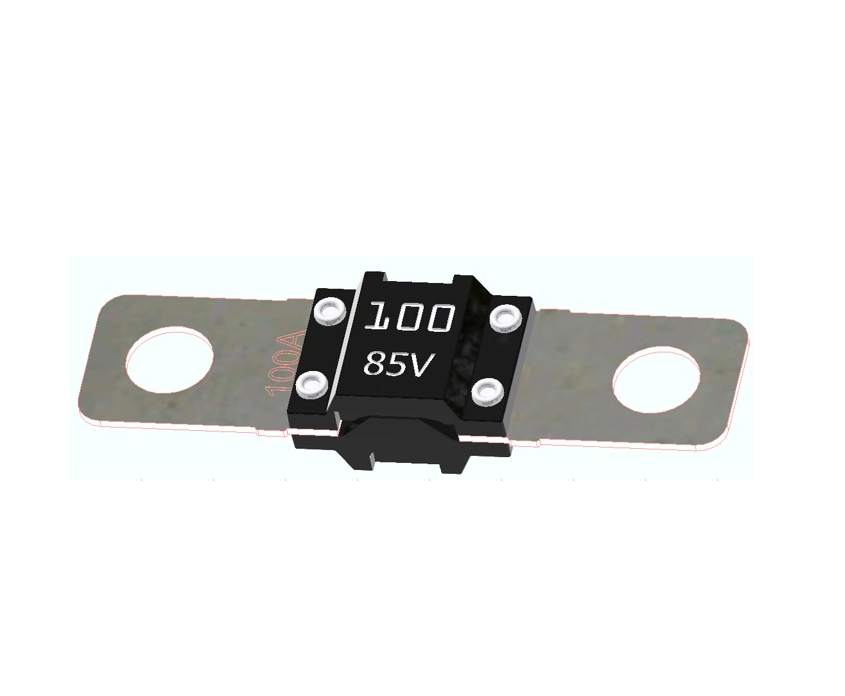

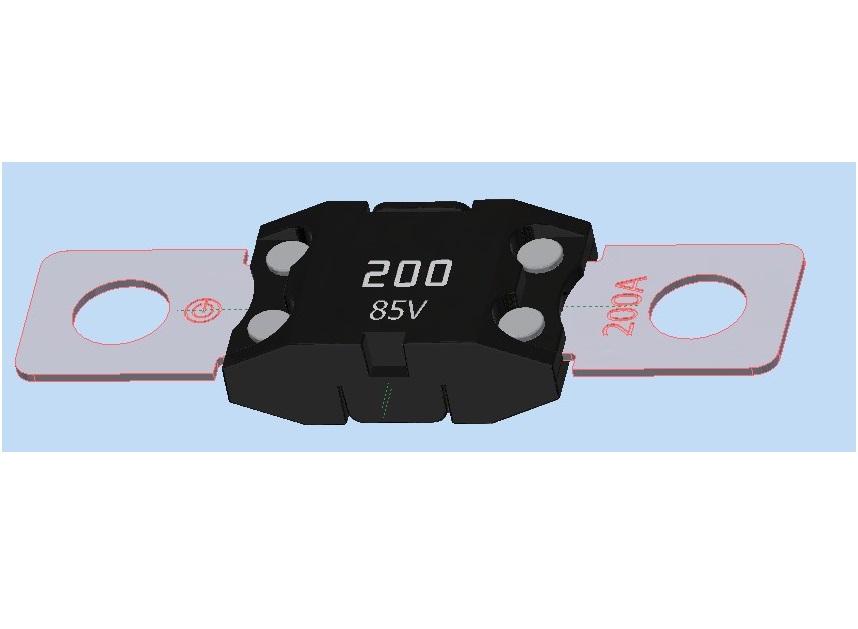

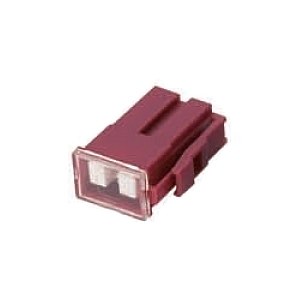

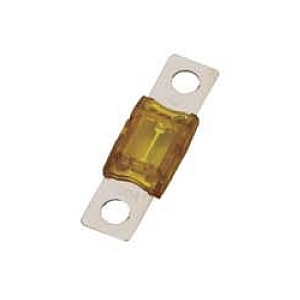

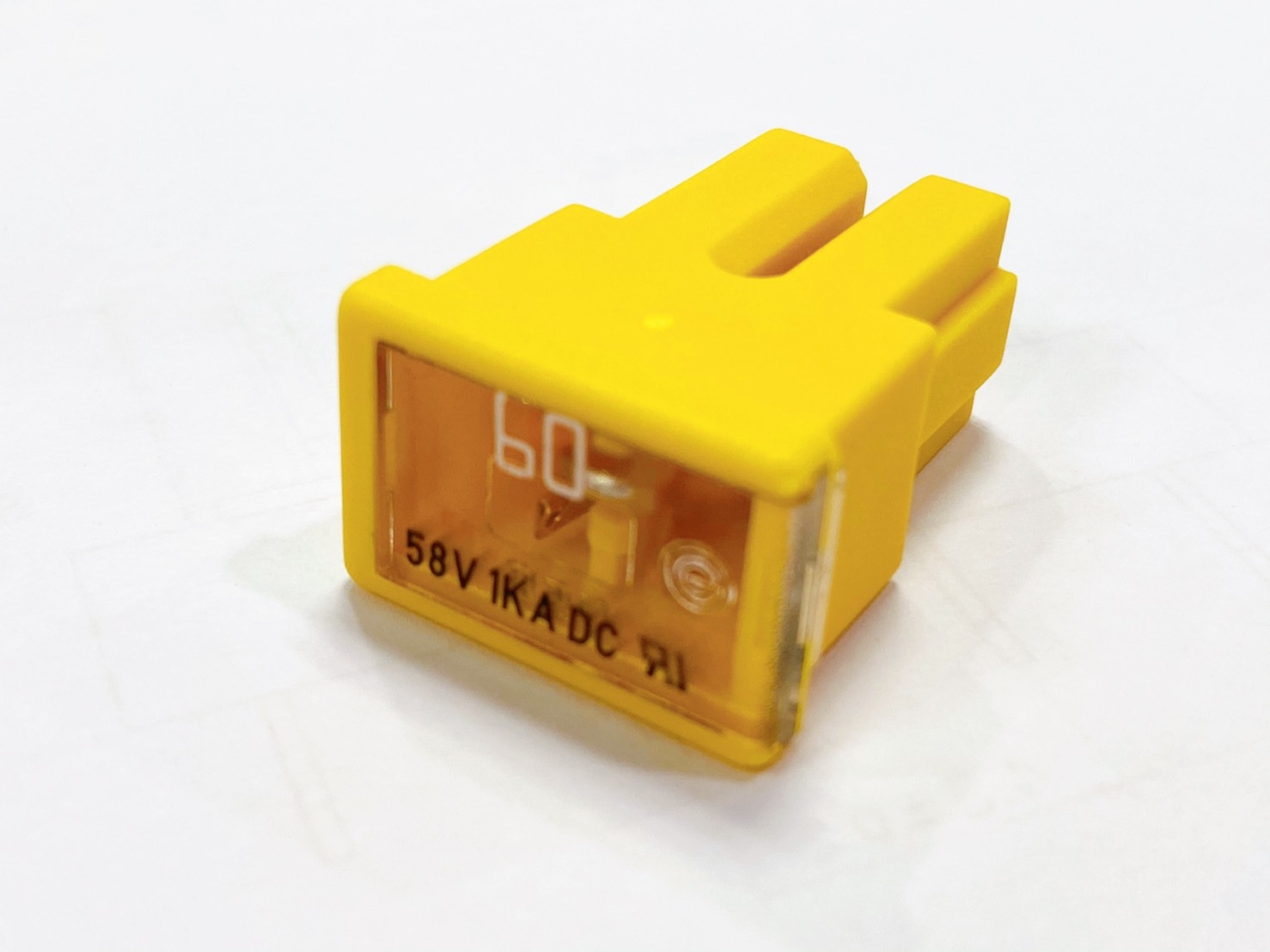

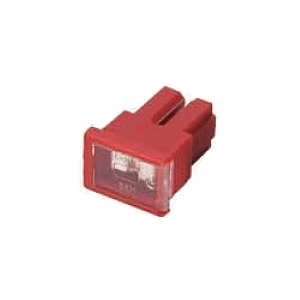

Bolt-on Fuse

Specifications

• 1.Voltage Rating : 85V DC
• 2.Interrupting Rating: 2700A @ 85V DC
• 3.Recommended Environmental Temperature:
• -40°C ~ +125 °C
• 4.Fuse Mounting: Threaded Stud And Hex Nuts
•    Recommended  Torque: 9.0Nm  ± 1.0 Nm(M6)
• 5.Housing Material: HTN-GF30 (UL94-V0)/ Color: Black
• 6.Terminals Material: Copper alloy Tin plated
• 7.Rivet material:Aluminum alloy
• 8.Referes to ISO 20934 - Type SF36
• 9 UL Recognized
• 10.RoHS Compliant

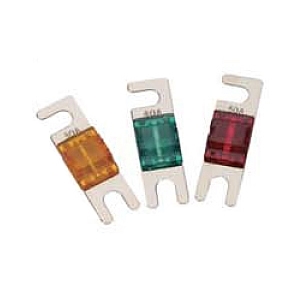

Specifications

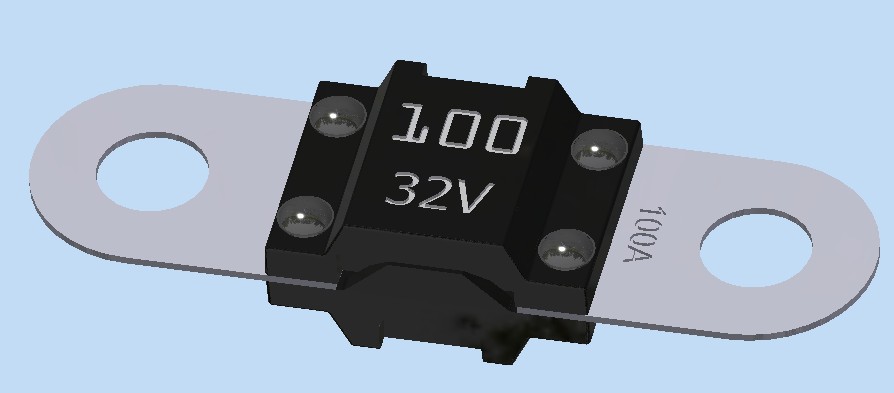

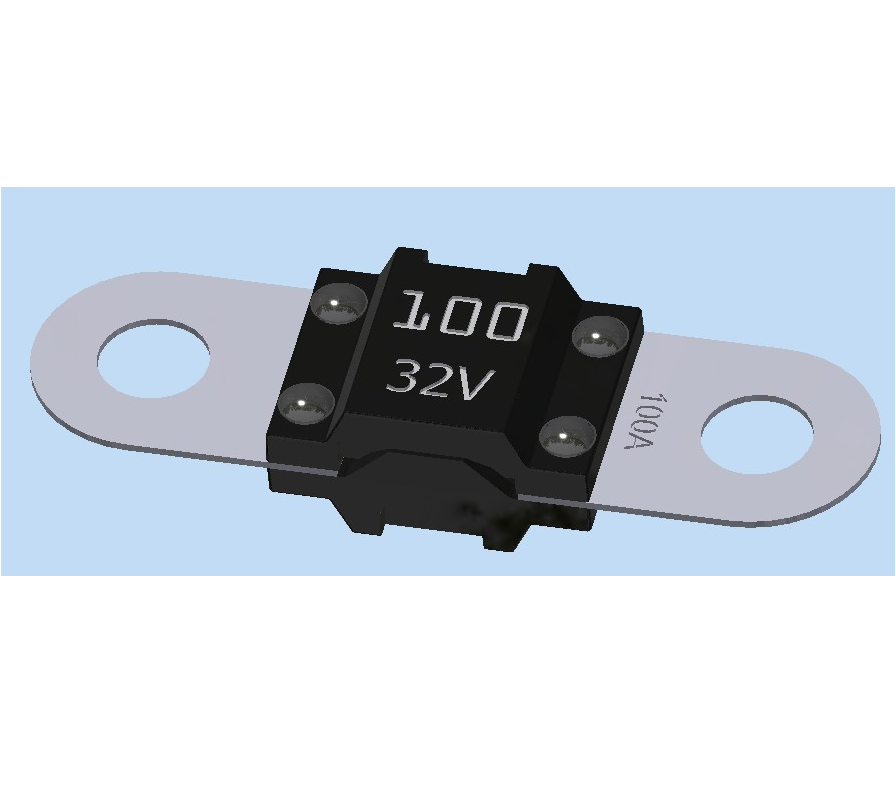

• Rated Current(A): 30A~200A

• Interrupting Rating: 2000A @ 32V DC

• Ambient teperature:-40~125℃
• Body:NY-GF/HTN-GF
• Terminals Material: Copper alloy  Tin plated
• UL Recognized




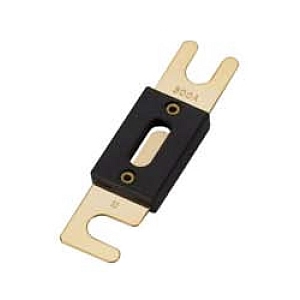

Specifications

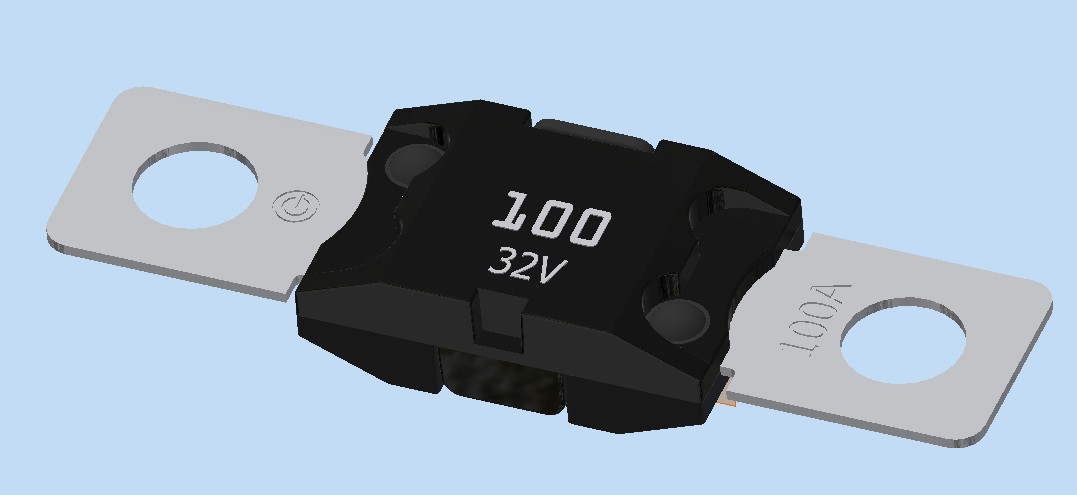

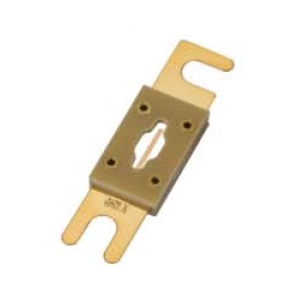

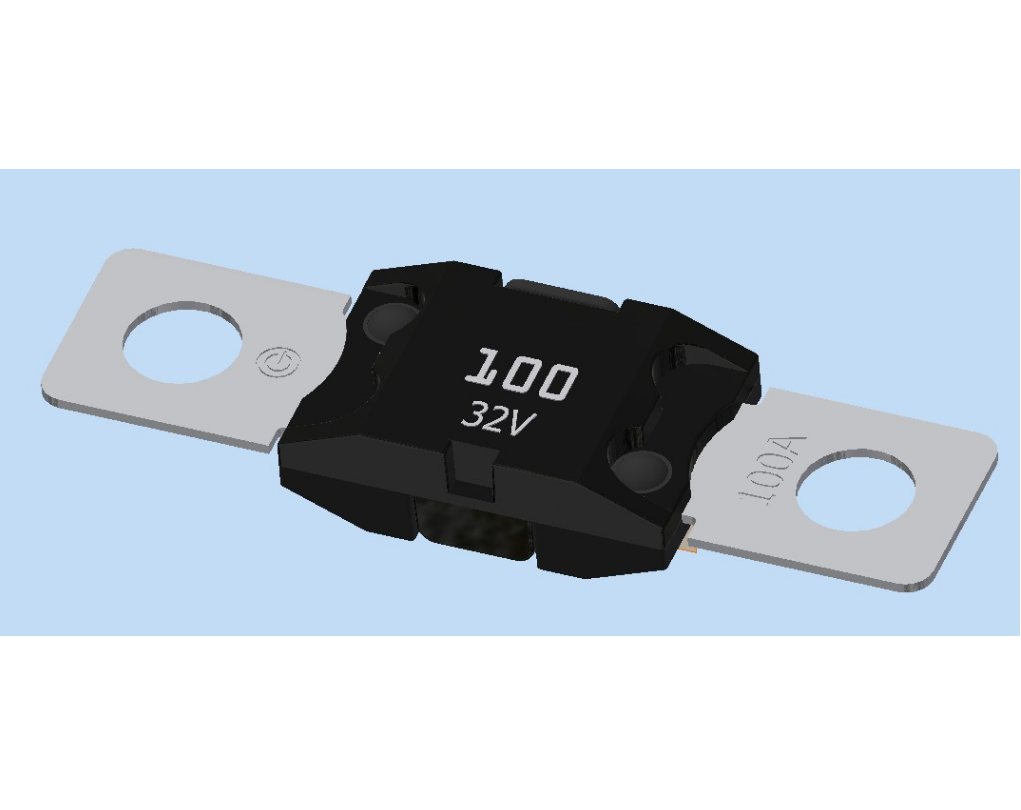

• Rated Current(A): 80A~400A ; 80A~300A(UL)
• Interrupting Ratings:1000A @32V DC
• Ambient teperature:-40~125°C
• Body:HTN
• Termination:Copper Alloy Tin-plated
• UL Recognized

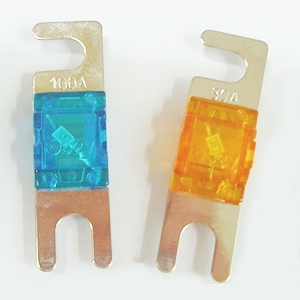

Specifications

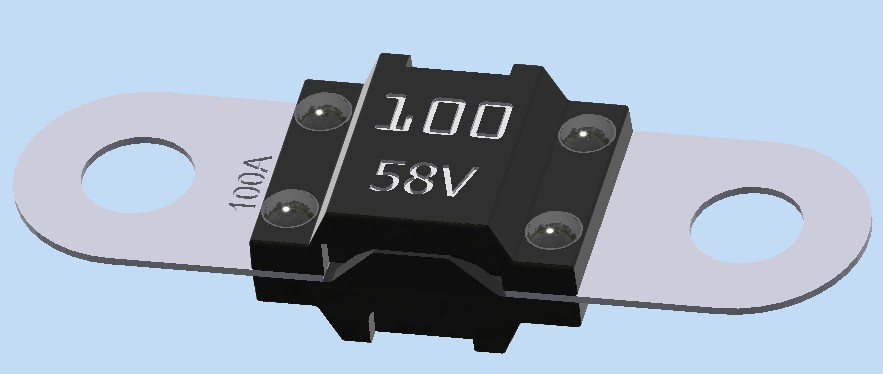

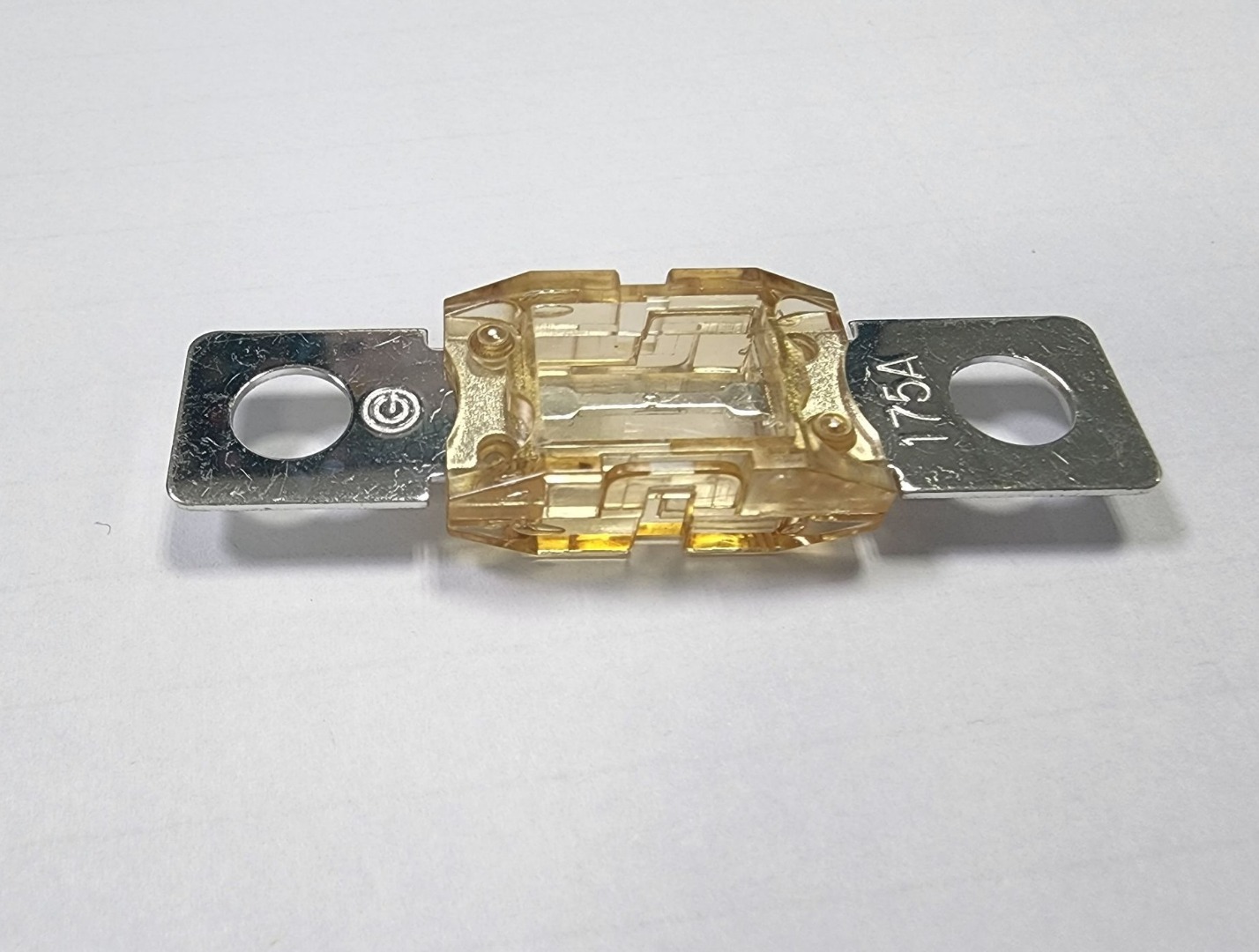

• Rated Current(A): 30A~200A

• Interrupting Rating: 1000A @ 58V DC

• Ambient teperature:-40~125℃
• Body:NY-GF/HTN-GF
• Terminals Material: Copper alloy  Tin plated
• UL Recognized

Specifications

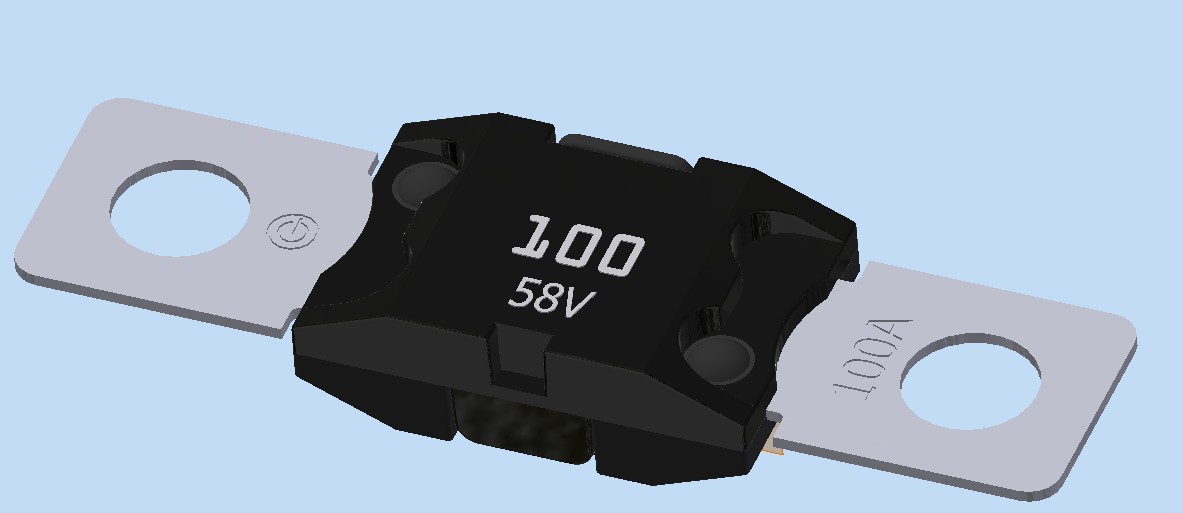

• Rated Current(A): 80A~400A ; 80A~300A(UL)

• Interrupting Rating: 1000A @ 58V DC
• Ambient teperature:-40~125℃
• Body:HTN
• Termination:Copper Alloy Tin-plated
• UL Recognized

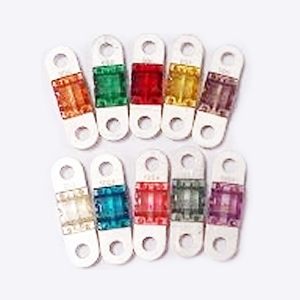

Specifications

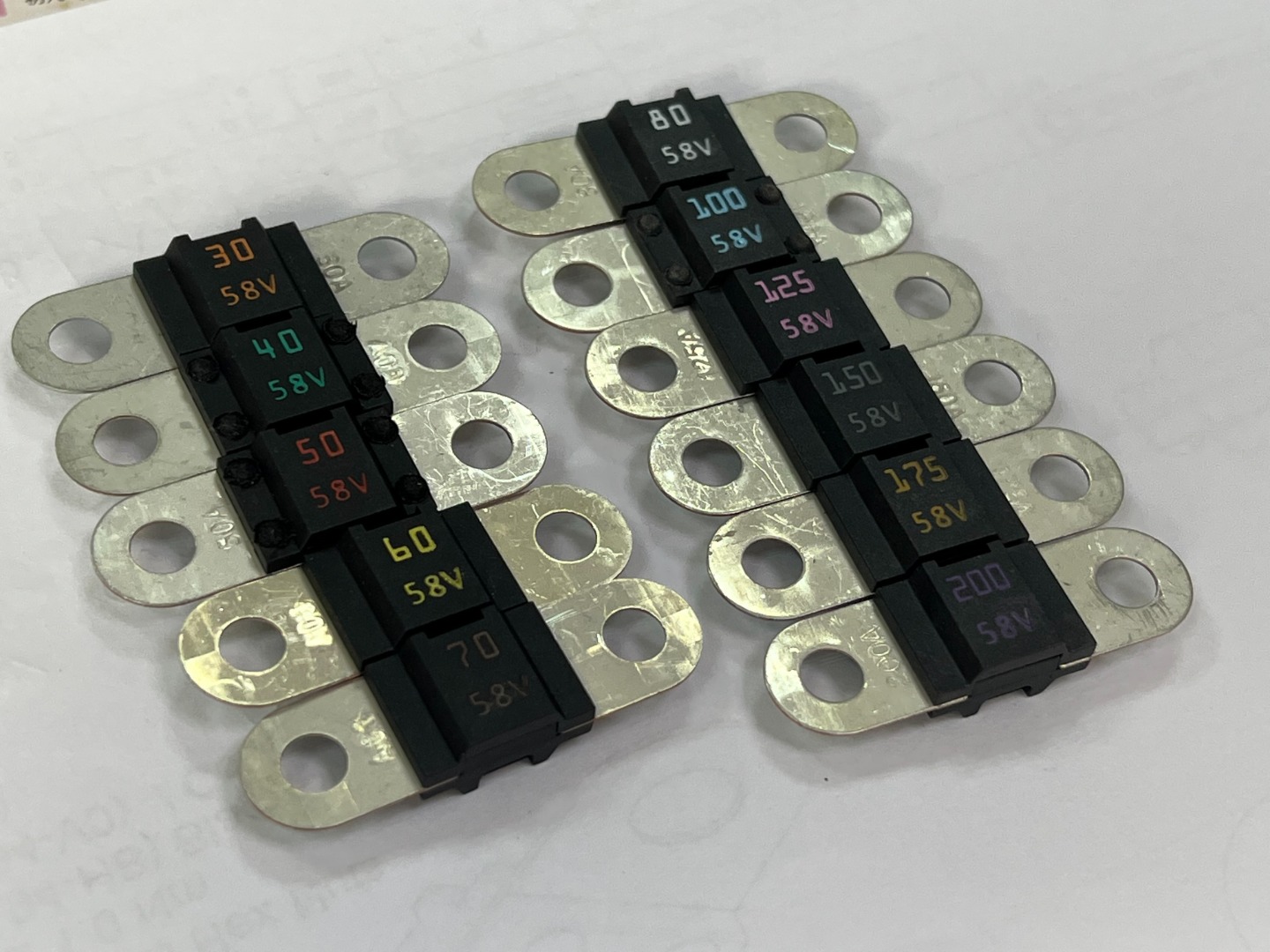

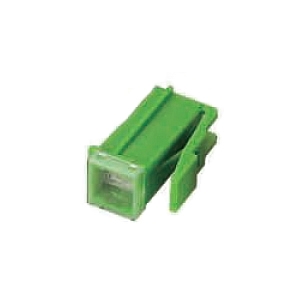

Electrical Characteristics Test
According to ISO 8820-5 Standard Specifications.

30A:Orange
40A:Green
50A:Red
60A:Yellow
70A:Brown
80A:Clear
100A:Blue
125A:Pink
150A:Gray
175A:Tan
200A:Violet

Specifications

• Interrupting Ratings:1000Amp at 32V DC
• Ambient teperature:-40~125C
• Body:PES
• Termination:Copper Alloy Tin-plated
